AD2S82A

Variable Resolution/ Monolithic Resolver-to-Digital Converters

Analog Devices

AD2S82A Features

* Monolithic (BiMOS ll) Tracking R/D Converter Ratiometric Conversion Low Power Consumption: 300 mW Typ Dynamic Performance Set by User Velocity Output ESD Class 2 Protection (2,000 V Min) AD2S81A 28-Lead DIP Package Low Cost AD2S82A 44-Lead PLCC Package 10-, 12-, 14- and 16-Bit Resolution Set by User

AD2S82A General Description

Variable Resolution, Monolithic Resolver-to-Digital Converters AD2S81A/AD2S82A AD2S82A FUNCTIONAL BLOCK DIAGRAM DEMOD DEMOD INTEGRATOR I/P O/P I/P AD2S82A SIN I/P SIGNAL GND COS I/P ANALOG GND RIPPLE CLK +12V

*12V COMP DATA LOAD A1 SEGMENT SWITCHING A2 PHASE SENSITIVE DETECTOR R-2R DAC .

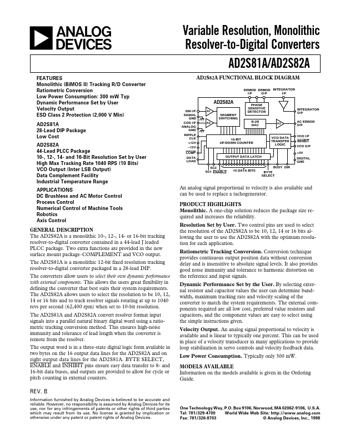

AD2S82A Datasheet (207.47 KB)

AD2S82A Datasheet Preview — Preview of AD2S82A PDF

Datasheet Details

Part number:

AD2S82A

Manufacturer:

Analog Devices ↗

File Size:

207.47 KB

Description:

Variable resolution/ monolithic resolver-to-digital converters.
