AD4112 - Sigma-Delta ADC

Product Overview

Analog Devices

Datasheet Details

Part number	AD4112
Manufacturer	Analog Devices
File Size	1.01 MB
Description	Sigma-Delta ADC
Datasheet	AD4112 Datasheet

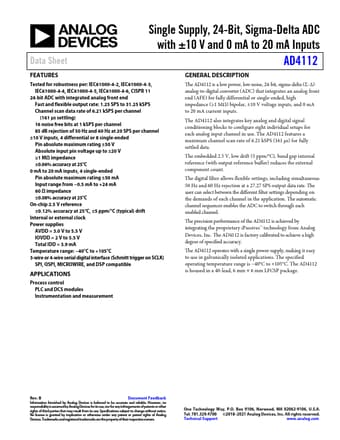

Additional preview pages of the AD4112 datasheet.

Product details

Description

The AD4112 is a low power, low noise, 24-bit, sigma-delta (Σ-Δ) analog-to-digital converter (ADC) that integrates an analog front end (AFE) for fully differential or single-ended, high impedance (≥1 MΩ) bipolar, ±10 V voltage inputs, and 0 mA to 20 mA current inputs.

Features

Tested for robustness per: IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, CISPR 11 24-bit ADC with integrated analog front end Fast and flexible output rate: 1.25 SPS to 31.25 kSPS Channel scan data rate of 6.21 kSPS per channel (161 µs settling) 16 noise free bits at 1 kSPS per channel 85 dB rejection of 50 Hz and 60 Hz at 20 SPS per channel ±10 V inputs, 4 differential or 8 single-ended Pin absolute maximum rating ±50 V Absolute input pin voltage up to ±20 V ≥1 MΩ impeda.
