AD4115 - 24-Bit Sigma-Delta ADC

Product Overview

Analog Devices

Datasheet Details

Part number	AD4115
Manufacturer	Analog Devices
File Size	794.60 KB
Description	24-Bit Sigma-Delta ADC
Datasheet	AD4115 Datasheet

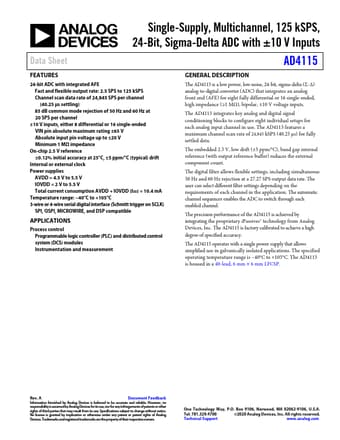

Additional preview pages of the AD4115 datasheet.

Product details

Description

The AD4115 is a low power, low noise, 24-bit, sigma-delta (Σ-Δ) analog-to-digital converter (ADC) that integrates an analog front end (AFE) for eight fully differential or 16 single-ended, high impedance (≥1 MΩ), bipolar, ±10 V voltage inputs.

Features

24-bit ADC with integrated AFE Fast and flexible output rate: 2.5 SPS to 125 kSPS Channel scan data rate of 24,845 SPS per channel (40.25 µs settling) 85 dB common mode rejection of 50 Hz and 60 Hz at 20 SPS per channel ±10 V inputs, either 8 differential or 16 single-ended VIN pin absolute maximum rating ±65 V Absolute input pin voltage up to ±20 V Minimum 1 MΩ impedance On-chip 2.5 V reference ±0.12% initial accuracy at 25°C, ±5 ppm/°C (typical) drift Internal or external clock Power supplies.
