AD412 - E-pHEMT MMIC

AD412 Description

E-pHEMT MMIC Product .
AD412 is designed as low cost Active Divider for many applications including FTTH, CATV System.

AD412 Features

* 4-Way Splitter
* Small size (3X3 mm)
* QFN SMD Type package
* Higher productivity
* Lower manufacturing cost
* -63dBc CSO 135 Channels @ +15dBmV/ch
* -77dBc CTB 135 Channels @ +15dBmV/ch
* -78dBc XMD 135 Channels @ +15dBmV/ch

AD412 Applications

* including FTTH, CATV System. This MMIC is based on Gallium Arsenide Enhancement Mode pHEMT which shows low current draw and very low noise. The data in this spec sheet is valid only for 75 ohm application. Specifications PARAMETER Frequency Gain Gain Flatness Input Return Loss Output Return Loss IN

📥 Download Datasheet

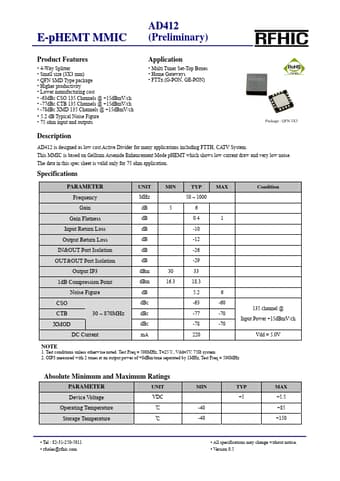

Preview of AD412 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD412
Manufacturer
RFHIC
File Size
402.41 KB
Datasheet
AD412_RFHIC.pdf
Description
E-pHEMT MMIC
