AD4630-24 - Dual Channel SAR ADC

Analog Devices

📥 Download Datasheet

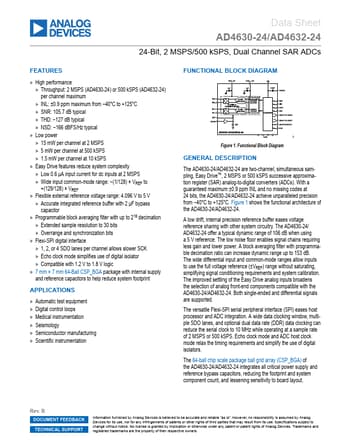

AD4630-24 Datasheet Preview — Preview of AD4630-24 PDF

Datasheet Details

Part number: AD4630-24
Manufacturer: Analog Devices ↗
File Size: 2.49 MB
Datasheet: AD4630-24-AnalogDevices.pdf
Description: Dual Channel SAR ADC

AD4630-24 Product details

Description

The AD4630-24/AD4632-24 are two-channel, simultaneous sampling, Easy Drive™, 2 MSPS or 500 kSPS successive approximation register (SAR) analog-to-digital converters (ADCs).. 40°C to +125°C..

Features

High performance.
Throughput: 2 MSPS (AD4630-24) or 500 kSPS (AD4632-24) per channel maximum.
INL: ±0.9 ppm maximum from.
40°C to +125°C.
SNR: 105.7 dB typical.
THD:.
127 dB typical.
NSD:.
166 dBFS/Hz typical.
Low power.
15 mW per channel at 2 MSPS.
5 mW per channel at 500 kSPS.
1.5 mW per channel at 10 kSPS.
Easy Drive features reduce system complexity.
Low 0.6 μA input current for dc inputs at 2 MSPS.
Wid.
