Part number:
AD4681
Manufacturer:
File Size:
1.16 MB
Description:
Dual simultaneous sampling sar adc.
* 16-bit ADC family
* Dual simultaneous sampling
* Fully differential analog inputs
* Throughput conversion rate
* 1 MSPS for AD4680
* 500 kSPS for AD4681
* SNR (typical)
* 92.5 dB, VREF = 3.3 V external
* 100 dB with 8× OSR, RES = 1
* On-chip oversampling fun
AD4681
1.16 MB
Dual simultaneous sampling sar adc.
📁 Related Datasheet
AD4680 - Dual Simultaneous Sampling SAR ADC
(Analog Devices)

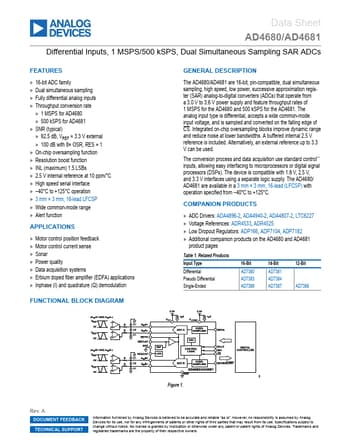

Data Sheet AD4680/AD4681
