AD5011

2 Pair/1 Pair ETSI Compatible HDSL Analog Front End

AD5011 Features

* Integrated front End for Single Pair or Two Pair HDSL Systems Meets ETSI Specifications Supports 1168 kbps and 2.32 Mbps Programmable Filtering Supports Adaptive HDSL Transmit and Receive Signal Path Functions Receive Hybrid Amplifier, PGA, ADC and Adaptable Filter Transmit DAC, Adaptable Filter and

AD5011 General Description

The AD5011 is an analog front end for two pair or single pair HDSL applications that use 1168 kbps or 2.32 Mbps data rates. The device integrates all the transmit and receive functional blocks. A standard serial interface is used to communicate with the DAC and ADC. The filters in both the transmit.

AD5011 Datasheet (93.29 KB)

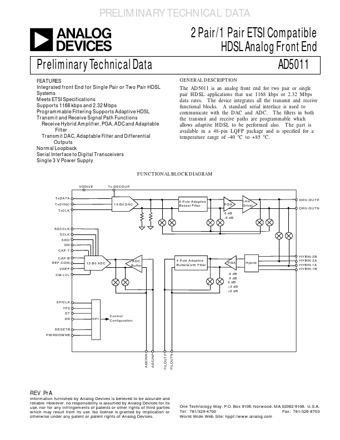

Preview of AD5011 PDF

Datasheet Details

Part number:

AD5011

Manufacturer:

Analog Devices ↗

File Size:

93.29 KB

Description:

2 pair/1 pair etsi compatible hdsl analog front end.
