AD5012N3LM - AC-DC / External Freestanding Medical Adapter

This page provides the datasheet information for the AD5012N3LM, a member of the AD5012N3LM_ad501-m_series_ds_1222224843 AC-DC / External Freestanding Medical Adapter family.

Datasheet Summary

Features

  • Universal AC input.
  • Fully regulated output.
  • EN61000-3-2 compliant.
  • Input power.

📥 Download Datasheet

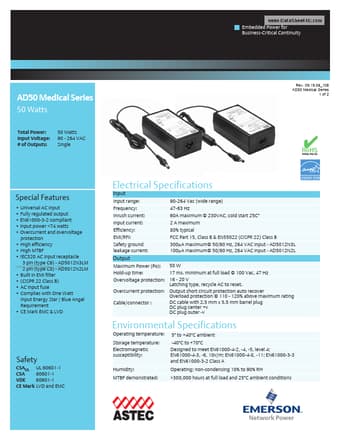

Datasheet preview – AD5012N3LM

Datasheet Details

Part number AD5012N3LM
Manufacturer Emerson
File Size 881.86 KB
Description AC-DC / External Freestanding Medical Adapter
Datasheet download datasheet AD5012N3LM Datasheet
Additional preview pages of the AD5012N3LM datasheet.

📁 Similar Datasheet

  • AD5011 - 2 Pair/1 Pair ETSI Compatible HDSL Analog Front End (Analog Devices)
  • AD500-9 - Avalanche Photodiode (Silicon Sensor)
  • AD500-9 - APD (First Sensor)
  • AD500-9-400M-TO5 - APD Hybrid (First Sensor)
  • AD502 - Operational Amplifier (Analog Devices)
  • AD5024 - nanoDAC (Analog Devices)
  • AD5025 - DAC SPI Interface (Analog Devices)
  • AD5026 - 16-BIT CONSTANT-CURRENT LED DRIVER (AiT Semiconductor)
  • AD503 - High Accuracy Low Offset Op Amp (Intersil)
  • AD504 - High Accuracy IC Operational Amplifier (Analog Devices)
Other Datasheets by Emerson
  • AD5012N3L - AC-DC / External Freestanding Adapter
  • AD5012N2L - AC-DC / External Freestanding Adapter
  • AD5012N2LM - AC-DC / External Freestanding Medical Adapter

Full PDF Text Transcription

Click to expand full text
Embedded Power for Business-Critical Continuity AD50 Medical Series 50 Watts Total Power: Input Voltage: # of Outputs: 50 Watts 90 - 264 VAC Single Rev. 09.19.08_108 AD50 Medical Series  of 2 RoHS Electrical Specifications Special Features • Universal AC input • Fully regulated output • EN61000-3-2 compliant • Input power <74 watts • Overcurrent and overvoltage protection • High efficiency • High MTBF • IEC320 AC input receptacle 3 pin (type C6) - AD5012N3LM www.DataSheet4U.
