AD500-9 - Avalanche Photodiode

Silicon Sensor

Datasheet Details

Part number	AD500-9
Manufacturer	Silicon Sensor
File Size	112.25 KB
Description	Avalanche Photodiode
Datasheet	AD500-9 Datasheet
Additional preview pages of the AD500-9 datasheet.

📁 Similar Datasheet

AD500-9 - APD (First Sensor)
AD500-9-400M-TO5 - APD Hybrid (First Sensor)
AD5011 - 2 Pair/1 Pair ETSI Compatible HDSL Analog Front End (Analog Devices)
AD5012N2L - AC-DC / External Freestanding Adapter (Emerson)
AD5012N2LM - AC-DC / External Freestanding Medical Adapter (Emerson)
AD5012N3L - AC-DC / External Freestanding Adapter (Emerson)
AD5012N3LM - AC-DC / External Freestanding Medical Adapter (Emerson)
AD502 - Operational Amplifier (Analog Devices)
AD5024 - nanoDAC (Analog Devices)
AD5025 - DAC SPI Interface (Analog Devices)

Other Datasheets by Silicon Sensor

Full PDF Text Transcription

Click to expand full text

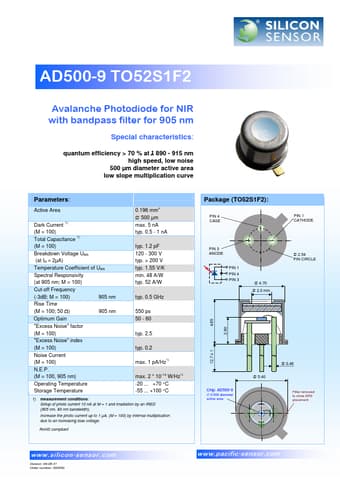

AD500-9 TO52S1F2 Avalanche Photodiode for NIR with bandpass filter for 905 nm Special characteristics: quantum efficiency > 70 % at λ 890 - 915 nm high speed, low noise 500 µm diameter active area low slope multiplication curve Parameters: Active Area Dark Current 1) (M = 100) Total Capacitance 1) (M = 100) Breakdown Voltage UBR (at ID = 2µA) Temperature Coefficient of UBR Spectral Responsivity (at 905 nm; M = 100) Cut-off Frequency (-3dB; M = 100) 905 nm Rise Time (M = 100; 50 Ω) 905 nm Optimum Gain "Excess Noise" factor (M = 100) "Excess Noise" index (M = 100) Noise Current (M = 100) N.E.P. (M = 100, 905 nm) Operating Temperature Storage Temperature 0.196 mm2 ∅ 500 µm max. 5 nA typ. 0.5 - 1 nA typ. 1.2 pF 120 - 300 V typ. > 200 V typ. 1.55 V/K min. 48 A/W typ.
