AD5061 Datasheet - Analog Devices

16-Bit Vout nanoDAC Converter

AD5061 Features

* Single 16-bit digital-to-analog converter (DAC), 4 LSB INL Power-on reset to midscale or zero-scale Guaranteed monotonic by design 3 power-down functions Low power serial interface with Schmitt triggered inputs Small 8-lead SOT-23 package, low power Fast settling time of 4 µs typically 2.7 V to 5.5

AD5061 General Description

The AD5061, a member of the Analog Devices, Inc., nanoDAC™ family, is a low power, single 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply. The device offers a relative accuracy specification of ±4 LSB and operation is guaranteed monotonic with a ±1 LSB DNL specifica.

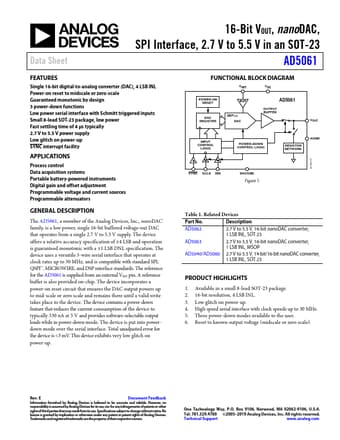

AD5061 Datasheet (1.66 MB)
