AD5380, 14-Bit denseDAC

Data Sheet 40-Channel, 3 V/5 V, Single-Supply, 14-Bit, denseDAC AD5380 .

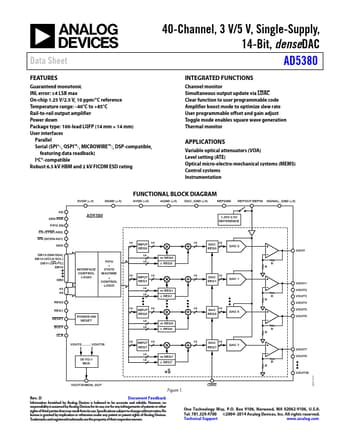

datasheet Preview Page 1 from Datasheet4u.com

AD5380-AnalogDevices.pdf

AD5380 Datasheet Preview — Preview of AD5380 PDF

Datasheet Details

Part number:

AD5380

Manufacturer:

Analog Devices ↗

File Size:

869.81 KB

Description:

14-Bit denseDAC

Features

* Guaranteed monotonic INL error: ±4 LSB max On-chip 1.25 V/2.5 V, 10 ppm/°C reference Temperature range:
* 40°C to +85°C Rail-to-rail output amplifier Power down Package type: 100-lead LQFP (14 mm × 14 mm) User interfaces Parallel Serial (SPI®-, QSPI™-, MICROWIRE™-, DSP-compatible, featuring d

Applications

* Variable optical attenuators (VOA) Level setting (ATE) Optical micro-electro-mechanical systems (MEMS) Control systems Instrumentation DVDD (×3) DGND (×3) FUNCTIONAL BLOCK DIAGRAM AVDD (×5) AGND (×5) DAC_GND (×5) REFGND REFOUT/REFIN SIGNAL_GND (×5) PD SER
