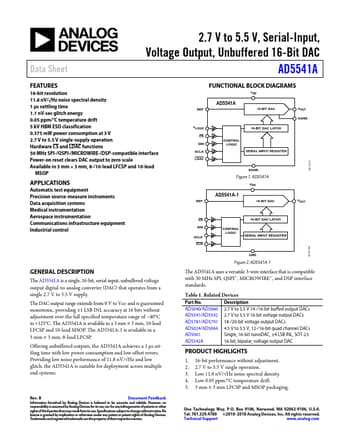

AD5541A Datasheet, Dac, Analog Devices

AD5541A Features

• Dac 16-bit resolution 11.8 nV/√Hz noise spectral density 1 µs settling time 1.1 nV-sec glitch energy 0.05 ppm/°C temperature drift 5 kV HBM ESD classification 0.375 mW power consumption at

PDF File Details

Part number:

AD5541A

Manufacturer:

Analog Devices ↗

File Size:

432.81kb

Download:

📄 Datasheet

Description:

Unbuffered 16-bit dac. The AD5541A is a single, 16-bit, serial input, unbuffered voltage output digital-to-analog converter (DAC) that operates from a singl

AD5541A Application

• Applications Automatic test equipment Precision source-measure instruments Data acquisition systems Medical instrumentation Aerospace instrumentatio
