AD5629R

dense DACs

AD5629R Features

* Low power octal DACs AD5629R: 12 bits AD5669R: 16 bits 2.6 mm × 2.6 mm 16-ball WLCSP 4 mm × 4 mm 16-lead LFCSP and 16-lead TSSOP On-chip 1.25 V/2.5 V, 5 ppm/°C reference Power down to 400 nA at 5 V, 200 nA at 3 V 2.7 V to 5.5 V power supply Guaranteed monotonic by design Power-on reset to zero scale

AD5629R General Description

The AD5629R/AD5669R devices are low power, octal, 12-/16bit, buffered voltage-output DACs. All devices are guaranteed monotonic by design. The AD5629R/AD5669R have an on-chip reference with an internal gain of 2. The AD5629R-1/AD5669R-1 have a 1.25 V, 5 ppm/°C reference, giving a full-scale output r.

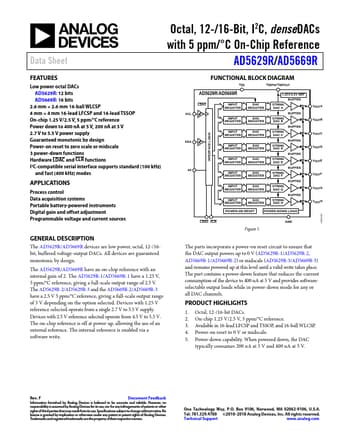

AD5629R Datasheet (1.06 MB)

Preview of AD5629R PDF

Datasheet Details

Part number:

AD5629R

Manufacturer:

Analog Devices ↗

File Size:

1.06 MB

Description:

Dense dacs.
