AD6600 Dual Channel/ Gain-Ranging ADC with RSSI

The AD6600 mixed-signal receiver chip directly samples signals at analog input frequencies up to 250 MHz. The device includes FUNCTIONAL BLOCK DIAGRAM NOISE FILTER FLT 0dB, *12dB, *24dB AIN ATTEN AIN GAIN DETECT PEAK SET RSSI 3 RSSI GAIN BIN ATTEN BIN 0dB, *12dB, *.

AD6600 Features

* Dual IF Inputs, 70 MHz

* 250 MHz Diversity or Two Independent IF Signals Separate Attenuation Paths Oversample RF Channels 20 MSPS on a Single Carrier 10 MSPS/Channel in Diversity Mode Total Signal Range 90+ dB 30 dB from Automatic Gain-Ranging (AGC) 60 dB from A/D Converter Range >100 dB Afte

AD6600_AnalogDevices.pdf

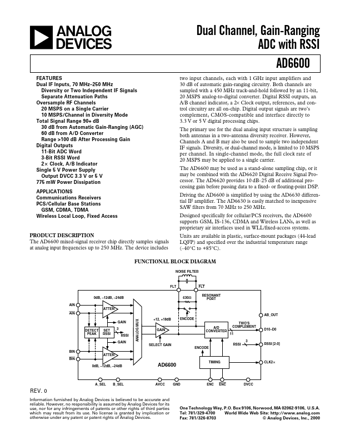

AD6600 Datasheet Preview — Preview of AD6600 PDF

Datasheet Details

Part number:

AD6600

Manufacturer:

Analog Devices ↗

File Size:

303.78 KB

Description:

Dual channel/ gain-ranging adc with rssi.
