AD6624

80 MSPS Digital Receive Signal Processor

Analog Devices

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Rochester Electronics LLC	AD6624AS	AD6624A - FOUR-CHANNEL, 100 MSPS	DigiKey	0	9 units	$37.26	🛒 Buy Now

AD6624 Datasheet (534.28 KB)

AD6624 Datasheet Preview — Preview of AD6624 PDF Datasheet

Datasheet Details

Part number:

AD6624

Manufacturer:

Analog Devices ↗

File Size:

534.28 KB

Description:

80 msps digital receive signal processor.

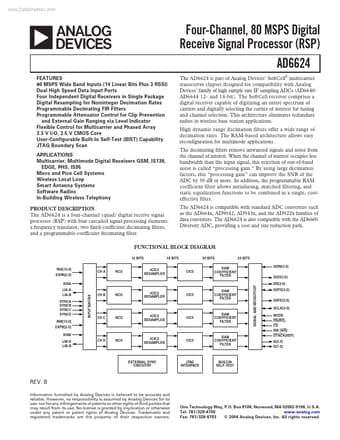

AD6624 Features

* 80 MSPS Wide Band Inputs (14 Linear Bits Plus 3 RSSI) Dual High Speed Data Input Ports Four Independent Digital Receivers in Single Package Digital Resampling for Noninteger Decimation Rates Programmable Decimating FIR Filters Programmable Attenuator Control for Clip Prevention and External Gain Ran

AD6624 General Description

Four-Channel, 80 MSPS Digital Receive Signal Processor (RSP) AD6624 The AD6624 is part of Analog Devices’ SoftCell® multicarrier transceiver chipset designed for compatibility with Analog Devices’ family of high sample rate IF sampling ADCs (AD6640/ AD6644 12- and 14-bit). The SoftCell receiver com.
