AD6642 Datasheet, Receiver, Analog Devices

AD6642 Features

  • Receiver 11-bit, 200 MSPS output data rate per channel Integrated noise shaping requantizer (NSR) Performance with NSR enabled SNR: 75.5 dBFS in 40 MHz band to 70 MHz @ 185 MSPS SNR: 73.7 dBFS i

PDF File Details

Part number:

AD6642

Manufacturer:

Analog Devices ↗

File Size:

1.01MB

Download:

📄 Datasheet

Description:

Dual if receiver. 3 Specifications 4 DC Specifications 4 AC Specifications 5 Digital Specifications 6 Switching Specifications 7 Timing Specificati

Datasheet Preview: AD6642 📥 Download PDF (1.01MB)

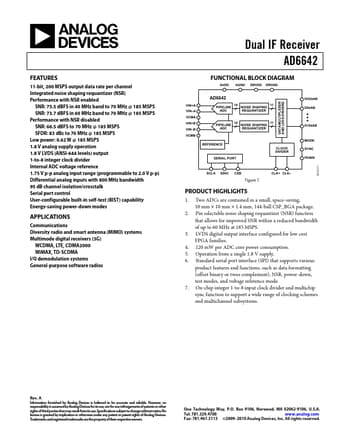

Page 2 of AD6642 Page 3 of AD6642

AD6642 Application

  • Applications Communications Diversity radio and smart antenna (MIMO) systems Multimode digital receivers (3G) WCDMA, LTE, CDMA2000 WiMAX, TD-SCDMA I
