AD6643 Datasheet, Receiver, Analog Devices

AD6643 Features

• Receiver 11-bit, 250 MSPS output data rate per channel Performance with NSR enabled SNR: 74.5 dBFS in a 55 MHz band to 90 MHz at 250 MSPS SNR: 72.0 dBFS in a 82 MHz band to 90 MHz at 250 MSPS Pe

PDF File Details

Part number:

AD6643

Manufacturer:

Analog Devices ↗

File Size:

2.03MB

Download:

📄 Datasheet

Description:

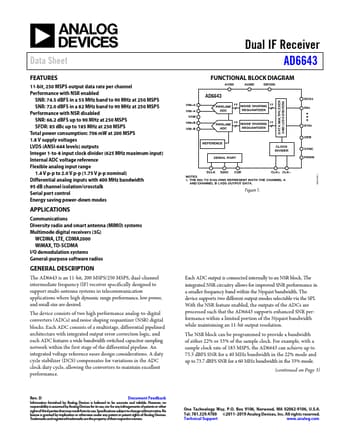

Dual if receiver. The AD6643 is an 11-bit, 200 MSPS/250 MSPS, dual-channel intermediate frequency (IF) receiver specifically designed to support multi-

AD6643 Application

• Applications Communications Diversity radio and smart antenna (MIMO) systems Multimode digital receivers (3G) WCDMA, LTE, CDMA2000 WiMAX, TD-SCDMA I
