AD6644 Datasheet, converter equivalent, Analog Devices

AD6644 Features

  • Converter 65 MSPS guaranteed sample rate 40 MSPS version available Sampling jitter < 300 fs 100 dB multitone SFDR 1.3 W power dissipation Differential analog inputs Pin compatible to AD6645 Twos

PDF File Details

Part number:

AD6644

Manufacturer:

Analog Devices ↗

File Size:

787.72kb

Download:

📄 Datasheet

Description:

40 msps/65 msps analog-to-digital converter. The AD6644 is a high speed, high performance, monolithic 14-bit analog-to-digital converter (ADC). All necessary functions, including

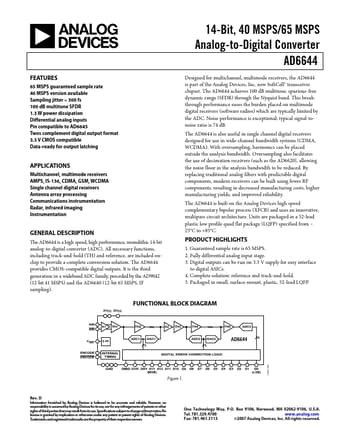

Datasheet Preview: AD6644 📥 Download PDF (787.72kb)
Page 2 of AD6644 Page 3 of AD6644

AD6644 Application

  • Applications Multichannel, multimode receivers AMPS, IS-136, CDMA, GSM, WCDMA Single channel digital receivers Antenna array processing Communicatio
