AD694

4 ~ 20mA Transmitter

AD694 Features

* 4

* 20 mA, 0

* 20 mA output ranges

* Precalibrated input ranges:

* 0 V to 2 V, 0 V to 10 V

* Precision voltage reference

* Programmable to 2.000 V or 10.000 V

* Single or dual supply operation

* Wide power supply range: 4.5 V to 36 V

* Wide output compli

AD694 General Description

The AD694 is a monolithic current transmitter that accepts high level signal inputs to drive a standard 4

*20 mA current loop for the control of valves, actuators, and other devices commonly used in process control. The input signal is buffered by an input amplifier that can be used to scale .

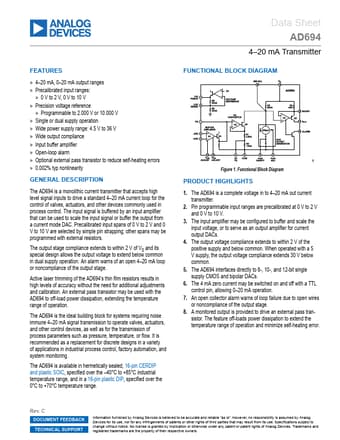

AD694 Datasheet (889.67 KB)

Preview of AD694 PDF

Datasheet Details

Part number:

AD694

Manufacturer:

Analog Devices ↗

File Size:

889.67 KB

Description:

4 ~ 20ma transmitter.
