AD698

Universal LVDT Signal Conditioner

AD698 Features

* Single Chip Solution, Contains Internal Oscillator and Voltage Reference No Adjustments Required Interfaces to Half-Bridge, 4-Wire LVDT DC Output Proportional to Position 20 Hz to 20 kHz Frequency Range Unipolar or Bipolar Output Will Also Decode AC Bridge Signals Outstanding Performance Linearity:

AD698 General Description

PRODUCT HIGHLIGHTS The AD698 is a complete, monolithic Linear Variable Differential Transformer (LVDT) signal conditioning subsystem. It is used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar dc voltage with a high degree of accuracy and repeatability..

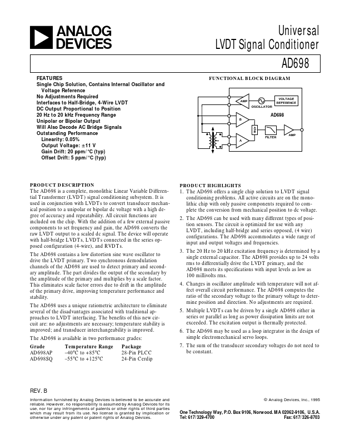

AD698 Datasheet (228.53 KB)

Preview of AD698 PDF

Datasheet Details

Part number:

AD698

Manufacturer:

Analog Devices ↗

File Size:

228.53 KB

Description:

Universal lvdt signal conditioner.
