AD7002

LC2MOS GSM Baseband I/O Port

AD7002 Features

* Single +5 V Supply Transmit Channel On-Chip GMSK Modulator Two 10-Bit D/A Converters Analog Reconstruction Filters Power-Down Mode Receive Channel Two Sigma-Delta A/D Converters FIR Digital Filters On-Chip Offset Calibration Power-Down Mode 3 Auxiliary D/A Converters Power-Down Modes On-Chip Voltage

AD7002 General Description

The AD7002 is a complete low power, two-channel, input/ output port with signal conditioning. The device is used as a baseband digitization subsystem, performing signal conversion between the DSP and the IF/RF sections in the Pan-European telephone system (GSM). The transmit path consists of an onb.

AD7002 Datasheet (455.58 KB)

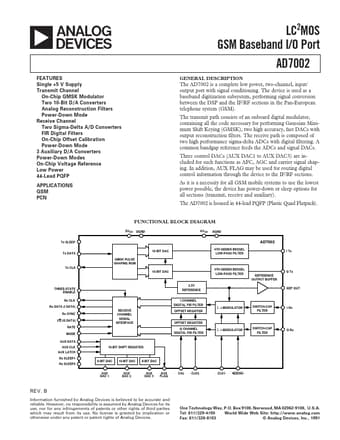

Preview of AD7002 PDF

Datasheet Details

Part number:

AD7002

Manufacturer:

Analog Devices ↗

File Size:

455.58 KB

Description:

Lc2mos gsm baseband i/o port.
