AD7010 CMOS JDC p/4 DQPSK Baseband Transmit Port

Analog Devices

Description

a .
The AD7010 is a complete low power, CMOS, π/4 DQPSK modulator with single +5 V power supply.

📥 Download Datasheet

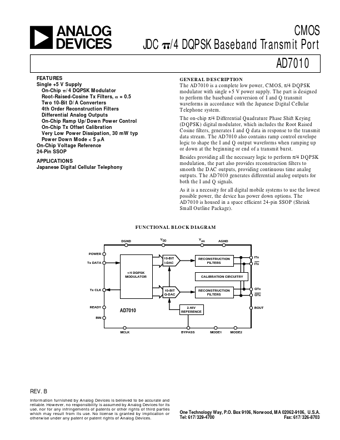

AD7010 Datasheet Preview — Preview of AD7010 PDF

Datasheet Specifications

Part number: AD7010
Manufacturer: Analog Devices ↗
File Size: 249.56 KB
Datasheet: AD7010_AnalogDevices.pdf
Description: CMOS JDC p/4 DQPSK Baseband Transmit Port

Features

* Single +5 V Supply On-Chip ␲ /4 DQPSK Modulator Root-Raised-Cosine Tx Filters, ␣ = 0.5 Two 10-Bit D/A Converters 4th Order Reconstruction Filters Differential Analog Outputs On-Chip Ramp Up/Down Power Control On-Chip Tx Offset Calibration Very Low Power Dissipation, 30 mW typ Power Down Mode < 5 ␮A
