AD7008

CMOS DDS Modulator

AD7008 Features

* Single +5 V Supply 32-Bit Phase Accumulator On-Chip COSINE and SINE Look-Up Tables On-Chip 10-Bit DAC Frequency, Phase and Amplitude Modulation Parallel and Serial Loading Software and Hardware Power Down Options 20 MHz and 50 MHz Speed Grades 44-Pin PLCC APPLICATIONS Frequency Synthesizers Frequenc

AD7008 General Description

The AD7008 direct digital synthesis chip is a numerically controlled oscillator employing a 32-bit phase accumulator, sine and cosine look-up tables and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for 1. Low Power 2. DSP/µP Interface 3. Completely .

AD7008 Datasheet (505.36 KB)

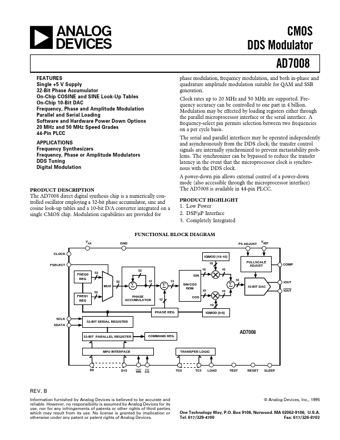

Preview of AD7008 PDF

Datasheet Details

Part number:

AD7008

Manufacturer:

Analog Devices ↗

File Size:

505.36 KB

Description:

Cmos dds modulator.
