AD7177-2

Sigma-Delta ADC

AD7177-2 Features

* GENERAL DESCRIPTION 32-bit data output Fast and flexible output rate: 5 SPS to 10 kSPS Channel scan data rate of 10 kSPS/channel (100 µs settling) Performance specifications 19.1 noise free bits at 10 kSPS 20.2 noise free bits at 2.5 kSPS 24.6 noise free bits at 5 SPS INL: ±1 ppm of FSR 85 dB filt

AD7177-2 General Description

32-bit data output Fast and flexible output rate: 5 SPS to 10 kSPS Channel scan data rate of 10 kSPS/channel (100 µs settling) Performance specifications 19.1 noise free bits at 10 kSPS 20.2 noise free bits at 2.5 kSPS 24.6 noise free bits at 5 SPS INL: ±1 ppm of FSR 85 dB filter rejection of 50 Hz.

AD7177-2 Datasheet (1.01 MB)

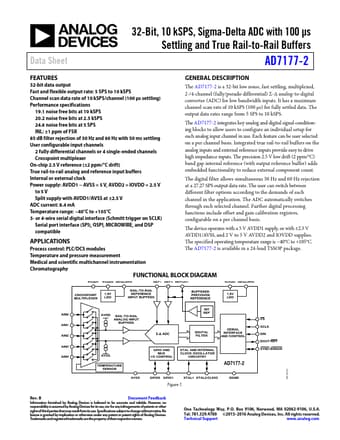

Preview of AD7177-2 PDF

Datasheet Details

Part number:

AD7177-2

Manufacturer:

Analog Devices ↗

File Size:

1.01 MB

Description:

Sigma-delta adc.
