AD7626 - PulSAR Differential ADC

Product Overview

Analog Devices

Datasheet Details

Part number	AD7626
Manufacturer	Analog Devices
File Size	963.21 KB
Description	PulSAR Differential ADC
Datasheet	AD7626 Datasheet

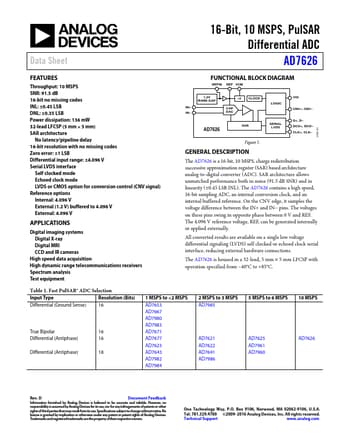

Additional preview pages of the AD7626 datasheet.

Product details

Description

The AD7626 is a 16-bit, 10 MSPS, charge redistribution successive approximation register (SAR) based architecture analog-to-digital converter (ADC). pins.

Features

Throughput: 10 MSPS SNR: 91.5 dB 16-bit no missing codes INL: ±0.45 LSB DNL: ±0.35 LSB Power dissipation: 136mW 32-lead LFCSP (5 mm × 5 mm) SAR architecture No latency/no pipeline delay 16-bit resolution with no missing codes Zero error: ±1LSB Differential input range: ±4.096 V Serial LVDS interface Self-clocked mode Echoed-clock mode LVDS or CMOS option for conversion control (CNV signal) Reference options Internal: 4.096 V External (1.2 V) buffered to 4.096 V External: 4.096 V.
