AD7628 Datasheet - Analog Devices

CMOS Dual 8-Bit Buffered Multiplying DAC

AD7628 Features

* On-Chip Latches for Both DACs +12 V to +15 V Operation DACs Matched to 1% Four Quadrant Multiplication TTL/CMOS Compatible from +12 V to +15 V Latch Free (Protection Schottkys not Required) APPLICATIONS Disk Drives Programmable Filters X-Y Graphics Gain/Attenuation CMOS Dual 8-Bit Buffered Multiply

AD7628 General Description

PRODUCT HIGHLIGHTS The AD7628 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in small 0.3" wide 20-pin DIPs and in 20-terminal surface mount packages. Separate on-chip latches are provided for each DAC to allow easy microprocessor inter.

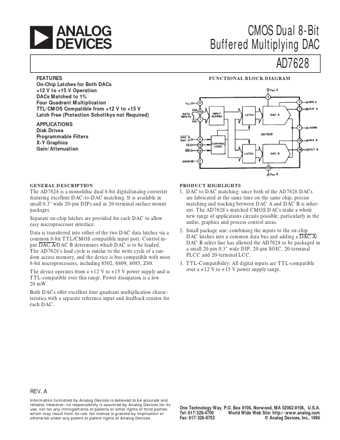

AD7628 Datasheet (193.52 KB)
