AD7768-1 - Precision 24-Bit ADC

Analog Devices

📥 Download Datasheet

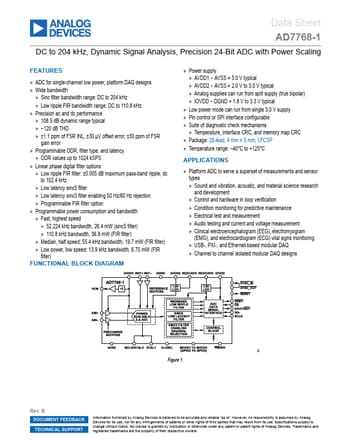

AD7768-1 Datasheet Preview — Preview of AD7768-1 PDF

Datasheet Details

Part number: AD7768-1
Manufacturer: Analog Devices ↗
File Size: 2.54 MB
Datasheet: AD7768-1-AnalogDevices.pdf
Description: Precision 24-Bit ADC

AD7768-1 Product details

Description

Specifications 5 3 V Operation 10 Timing Specifications11 1.8 V Timing Specifications 12 Absolute Maximum Ratings15 Thermal Resistance 15 ESD Caution15 Pin Configuration and Function Descriptions 16 Typical Performance Characteristics 18 Terminology 26 Theory of Operation27 Clocking, Sampling Tree, and Power Scaling..27 Noise Performance and Resolution28 Core Converter30 Clocking and Clock Selection33 Digital Filtering33 Decimation Rate Control 38 Antialiasing Filtering 38 Getting Started 39 P.

Features

ADC for single-channel low power, platform DAQ designs.
Wide bandwidth.
Sinc filter bandwidth range: DC to 204 kHz.
Low ripple FIR bandwidth range: DC to 110.8 kHz.
Precision ac and dc performance.
108.5 dB dynamic range typical.
120 dB THD.
±1.1 ppm of FSR INL, ±30 µV offset error, ±30 ppm of FSR gain error.
Programmable ODR, filter type, and latency.
ODR values up to 1024 kSPS.
Linear phase digital filter options.
Low ripple.
