AD7903

PulSAR ADC

AD7903 Features

* 16-bit resolution with no missing codes Throughput: 1 MSPS Low power dissipation 7.0 mW at 1 MSPS (VDD1 and VDD2 only) 12.0 mW at 1 MSPS (total) 140 µW at 10 kSPS INL: ±0.5 LSB typical, ±2.0 LSB maximum SINAD: 93.5 dB at 1 kHz THD:

* 112 dB at 1 kHz True differential analog input range: ±VREF

AD7903 General Description

The AD7903 is a dual 16-bit, successive approximation, analogto-digital converter (ADC) that operates from a single power supply, VDDx, per ADC. It contains two low power, high speed, 16-bit sampling ADCs and a versatile serial port interface (SPI). On the CNVx rising edge, the AD7903 samples the vo.

AD7903 Datasheet (1.10 MB)

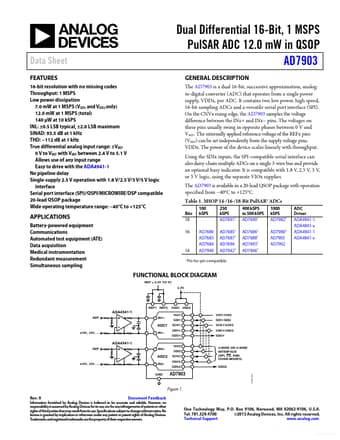

Preview of AD7903 PDF

Datasheet Details

Part number:

AD7903

Manufacturer:

Analog Devices ↗

File Size:

1.10 MB

Description:

Pulsar adc.
