AD7904

(AD79x4) 8-/10-/12-Bit ADCs

AD7904 Features

* Fast Throughput Rate: 1 MSPS Specified for VDD of 2.7 V to 5.25 V Low Power: 6 mW max at 1 MSPS with 3 V Supplies 13.5 mW max at 1 MSPS with 5 V Supplies 4 (Single-Ended) Inputs with Sequencer Wide Input Bandwidth: AD7924, 70 dB SNR at 50 kHz Input Frequency Flexible Power/Serial Clock Speed Managem

AD7904 Datasheet (502.69 KB)

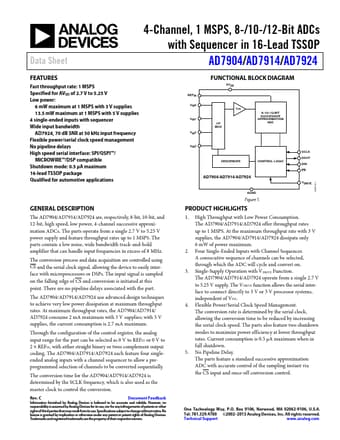

Preview of AD7904 PDF

Datasheet Details

Part number:

AD7904

Manufacturer:

Analog Devices ↗

File Size:

502.69 KB

Description:

(ad79x4) 8-/10-/12-bit adcs.
