AD8218 Datasheet, Monitor, Analog Devices

✔ AD8218 Features

High common-mode voltage range 4 V to 80 V operating
0.3 V to +85 V survival Buffered output voltage Gain = 20 V/V Wide operating temperature range:
40°C to +125°C Exce

✔ AD8218 Application

High-side current sensing 48 V telecom Power management Base stations Bidirectional motor control Precision

PDF File Details

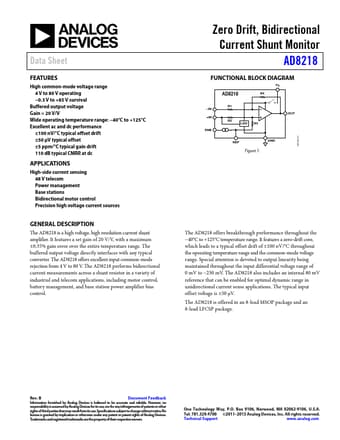

Analog Devices manufacturer logo and representative part image

Part number:

AD8218

Manufacturer:

Analog Devices ↗

File Size:

430.47kb

Download:

📄 Datasheet

Description:

Bidirectional current shunt monitor. The AD8218 is a high voltage, high resolution current shunt amplifier. It features a set gain of 20 V/V, with a maximum ±0.35% gain e

📥 Download PDF (430.47kb)
