AD82088D Datasheet PDF - ESMT 2x25W Stereo / 1x50W Mono Digital Audio Amplifier Specs

AD82088D - 2x25W Stereo / 1x50W Mono Digital Audio Amplifier

Datasheet Summary

Description

AD82088D is a digital audio amplifier capable of driving 25W (BTL) each to a pair of 8Ω load speaker and 50W (PBTL) to a 4Ω load speaker operating at 24V supply without external heat-sink or fan requirement with play music.

Features

16/18/20/24-bits input with I2S, Left-alignment and Right-alignment and TDM data format.
PSNR & DR(A-weighting) Loudspeaker: 107dB (PSNR), 108dB (DR)@24V.
Multiple sampling frequencies (Fs) 8kHz, 16kHz, 32kHz/44.1kHz/48kHz and 88.2kHz/96kHz.
System clock = 32x, 48x, 64x, 96x, 128x, 192x, 256x Fs BCLK system: 32x~256x Fs for 8kHz, 16kHz and 32kHz / 44.1kHz / 48kHz and 88.2kHz / 96kHz.
Supply voltage 3.3V/1.8V for digital circuit 8V~26V for loudspeaker driver.
Suppor.

Datasheet Details

Part number	AD82088D
Manufacturer	ESMT
File Size	1.58 MB
Description	2x25W Stereo / 1x50W Mono Digital Audio Amplifier
Datasheet	AD82088D Datasheet
Additional preview pages of the AD82088D datasheet.

📁 Similar Datasheet

AD8208 - Precision Difference Amplifier (Analog Devices)

AD820 - FET Input Op Amp (Analog Devices)

AD8200 - Single Supply Difference Amplifier (Analog Devices)

AD8202 - Single-Supply Difference Amplifier (Analog Devices)

AD8203 - Single-Supply Difference Amplifier (Analog Devices)

AD8205 - Single-Supply 42 V System Difference Amplifier (Analog Devices)

AD8206 - Bidirectional Current Shunt Amplifier (Analog Devices)

AD8207 - Bidirectional Difference Amplifier (Analog Devices)

AD8209 - Precision Difference Amplifier (Analog Devices)

AD8209A - Precision Difference Amplifier (Analog Devices)

Full PDF Text Transcription

Click to expand full text

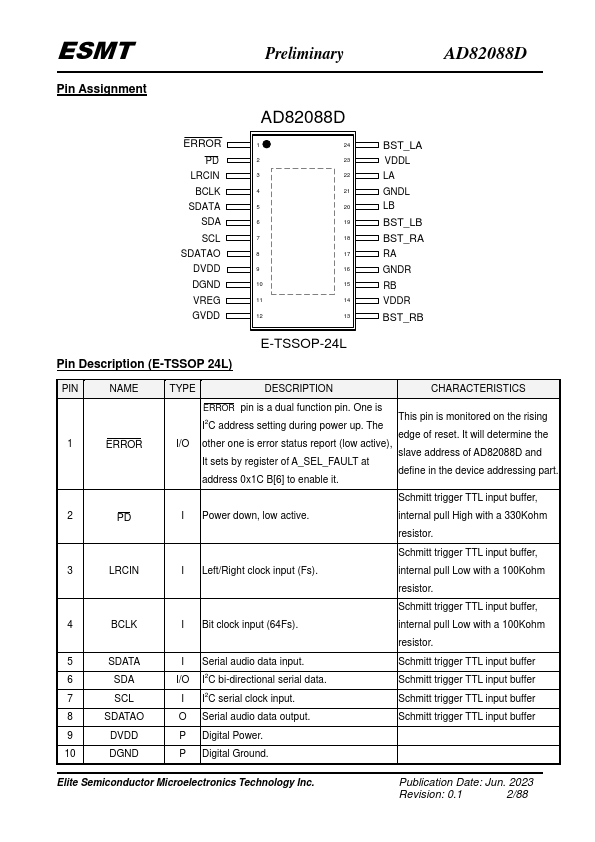

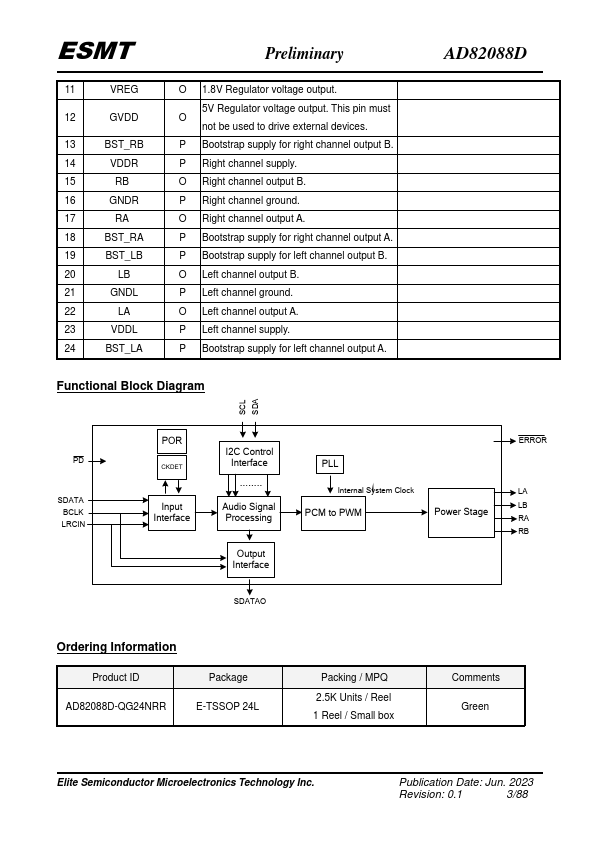

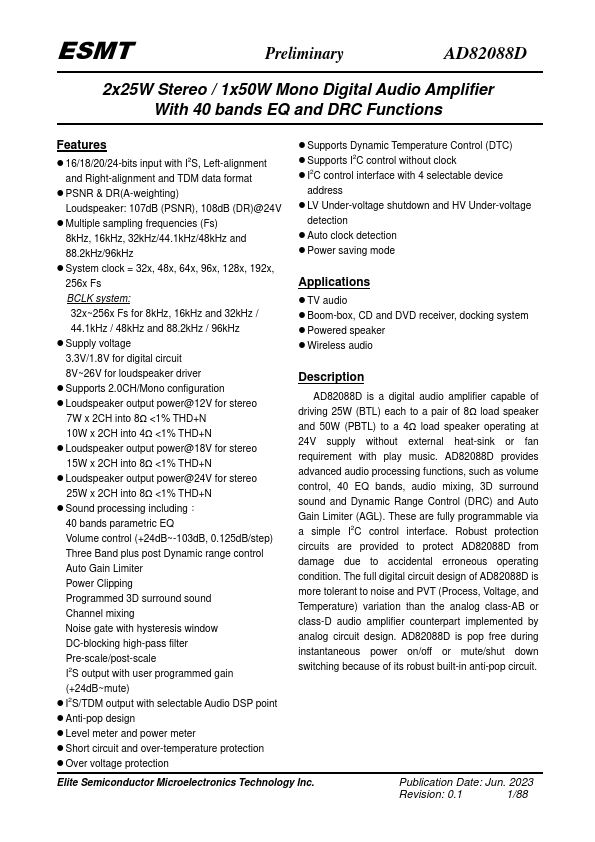

ESMT Preliminary AD82088D 2x25W Stereo / 1x50W Mono Digital Audio Amplifier With 40 bands EQ and DRC Functions Features  16/18/20/24-bits input with I2S, Left-alignment and Right-alignment and TDM data format  PSNR & DR(A-weighting) Loudspeaker: 107dB (PSNR), 108dB (DR)@24V  Multiple sampling frequencies (Fs) 8kHz, 16kHz, 32kHz/44.1kHz/48kHz and 88.2kHz/96kHz  System clock = 32x, 48x, 64x, 96x, 128x, 192x, 256x Fs BCLK system: 32x~256x Fs for 8kHz, 16kHz and 32kHz / 44.1kHz / 48kHz and 88.2kHz / 96kHz  Supply voltage 3.3V/1.8V for digital circuit 8V~26V for loudspeaker driver  Supports 2.
