AD8422

Precision Instrumentation Amplifier

AD8422 Features

* Low power: 368 µA maximum quiescent current

* Rail-to-rail output

* Low noise and distortion

* 8 nV/√Hz maximum input voltage noise at 1 kHz

* 0.15 µV p-p RTI noise (G = 100)

* 0.5 ppm nonlinearity with 2 kΩ load (G = 1)

* Excellent ac specifications

* 80 dB minimum

AD8422 General Description

The AD8422 is a high precision, low power, low noise, rail-to-rail instrumentation amplifier that delivers the best performance per unit microampere in the industry. The AD8422 processes signals with ultralow distortion performance that is load independent over its full output range. The AD8422 is t.

AD8422 Datasheet (1.97 MB)

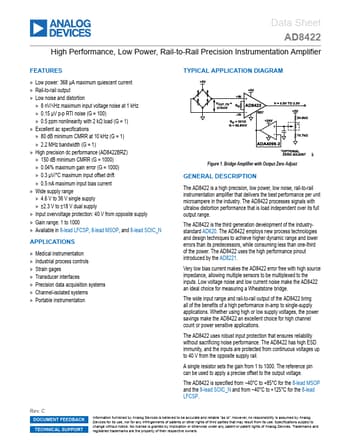

Preview of AD8422 PDF

Datasheet Details

Part number:

AD8422

Manufacturer:

Analog Devices ↗

File Size:

1.97 MB

Description:

Precision instrumentation amplifier.
