AD8426 - Rail-to-Rail Output Instrumentation Amplifier

The AD8426 is a dual-channel, low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain from 1 to 1000. The AD8426 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output.

AD8426 Features

* 2 channels in a small, 4 mm × 4 mm LFCSP LFCSP package has no metal pad More routing room No current leakage to pad Gain set with 1 external resistor Gain range: 1 to 1000 Input voltage goes below ground Inputs protected beyond supplies Very wide power supply range Single supply: 2.2 V to 36 V Dual

AD8426_AnalogDevices.pdf

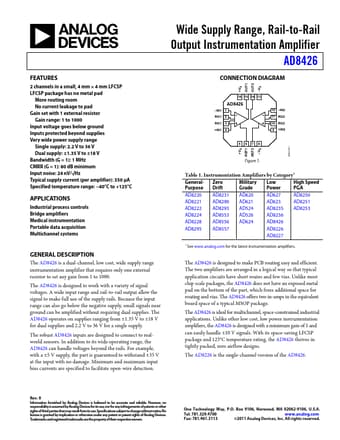

AD8426 Datasheet Preview — Preview of AD8426 PDF

Datasheet Details

Part number:

AD8426

Manufacturer:

Analog Devices ↗

File Size:

653.02 KB

Description:

Rail-to-rail output instrumentation amplifier.
