AD8551

Rail-to-Rail Input/Output Operational Amplifiers

AD8551 Features

* Low offset voltage: 1 μV Input offset drift: 0.005 μV/°C Rail-to-rail input and output swing 5 V/2.7 V single-supply operation High gain, CMRR, PSRR: 130 dB Ultralow input bias current: 20 pA Low supply current: 700 μA/op amp Overload recovery time: 50 μs No external capacitors required APPLICATIONS

AD8551 General Description

This family of amplifiers has ultralow offset, drift, and bias current. The AD8551, AD8552, and AD8554 are single, dual, and quad amplifiers featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V with a single supply. The AD8551/AD8552/AD8554 provide the bene.

AD8551 Datasheet (531.16 KB)

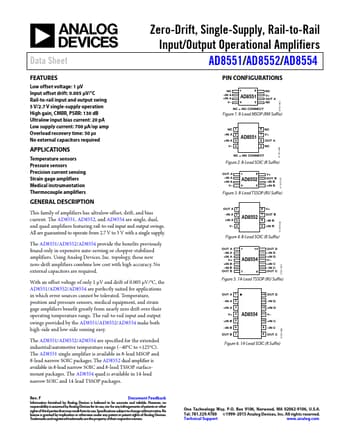

Preview of AD8551 PDF

Datasheet Details

Part number:

AD8551

Manufacturer:

Analog Devices ↗

File Size:

531.16 KB

Description:

Rail-to-rail input/output operational amplifiers.
