AD8554, AD8551 Datasheet - Analog Devices

AD8554 Rail-to-Rail Input/Output Operational Amplifiers

This family of amplifiers has ultralow offset, drift, and bias current. The AD8551, AD8552, and AD8554 are single, dual, and quad amplifiers featuring rail-to-rail input and output swings. All are guaranteed to operate from 2.7 V to 5 V with a single supply. The AD8551/AD8552/AD8554 provide the bene.

AD8554 Features

* Low offset voltage: 1 μV Input offset drift: 0.005 μV/°C Rail-to-rail input and output swing 5 V/2.7 V single-supply operation High gain, CMRR, PSRR: 130 dB Ultralow input bias current: 20 pA Low supply current: 700 μA/op amp Overload recovery time: 50 μs No external capacitors required APPLICATIONS

AD8551-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: AD8554, AD8551. Please refer to the document for exact specifications by model.

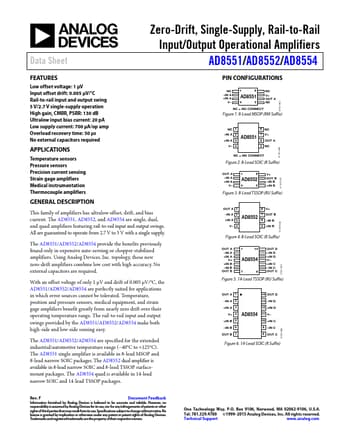

AD8554 Datasheet Preview Page 2 AD8554 Datasheet Preview Page 3

Datasheet Details

Part number:

AD8554, AD8551

Manufacturer:

Analog Devices ↗

File Size:

531.16 KB

Description:

Rail-to-rail input/output operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: AD8554, AD8551.
Please refer to the document for exact specifications by model.
