AD8620 Datasheet, amplifier equivalent, Analog Devices

AD8620 Features

• Amplifier Low noise: 6 nV/√Hz Low offset voltage: 100 μV maximum Low input bias current: 10 pA maximum Fast settling: 600 ns to 0.01% Low distortion Unity gain stable No phase reversal Dual-suppl

PDF File Details

Part number:

AD8620

Manufacturer:

Analog Devices (https://www.analog.com/)

File Size:

319.76kb

Download:

📄 Datasheet

Description:

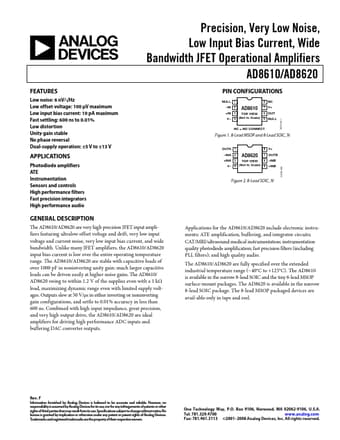

Wide bandwidth jfet operational amplifier. The AD8610/AD8620 are very high precision JFET input amplifiers featuring ultralow offset voltage and drift, very low input voltage a

AD8620 Application

• Applications Photodiode amplifiers ATE Instrumentation Sensors and controls High performance filters Fast precision integrators High performance aud
