AD9219 Datasheet, Converter, Analog Devices

AD9219 Features

  • Converter 4 ADCs integrated into 1 package 94 mW ADC power per channel at 65 MSPS SNR = 60 dB (to Nyquist) ENOB = 9.7 bits SFDR = 78 dBc (to Nyquist) Excellent linearity DNL = ±0.2 LSB (typical)

PDF File Details

Part number:

AD9219

Manufacturer:

Analog Devices ↗

File Size:

1.52MB

Download:

📄 Datasheet

Description:

40/65 msps serial lvds 1.8 v a/d converter. The AD9219 is a quad, 10-bit, 40/65 MSPS analog-to-digital converter (ADC) with an on-chip sample-and-hold circuit designed for low c

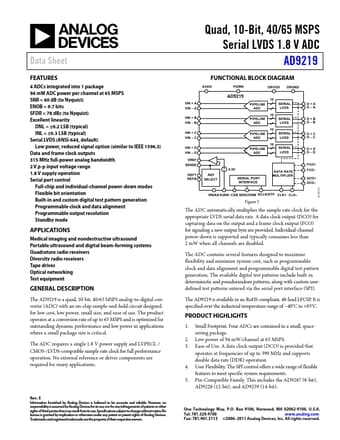

Datasheet Preview: AD9219 📥 Download PDF (1.52MB)
Page 2 of AD9219 Page 3 of AD9219

AD9219 Application

  • Applications Medical imaging and nondestructive ultrasound Portable ultrasound and digital beam-forming systems Quadrature radio receivers Diversity
