AD9256H

DIGITAL AMPLIFIER POWER STAGE

AD9256H Features

* n PVDD range from 10.8V to 16.5V n Support single-ended input audio PWM (AD) modulated signal n Support differential input audio PWM (AD & BD) modulated signal n Loudspeaker output power for stereo (BTL) - 10W x 2CH @ THD+N=0.4% into 8Ω at 15V - 8W x 2CH @ THD+N=8.4% into 8Ω at 12V n Loudspeaker out

AD9256H General Description

The AD9256H is a high performance stereo digital amplifier power stage. It can deliver 10W x 2CH output power into 8Ω loudspeaker for stereo or 20W x 1ch output power into 4Ω loudspeaker for mono in BTL configuration within <1% THD+N at 15V supply. A patented, built-in anti-pop function can reduce t.

AD9256H Datasheet (111.48 KB)

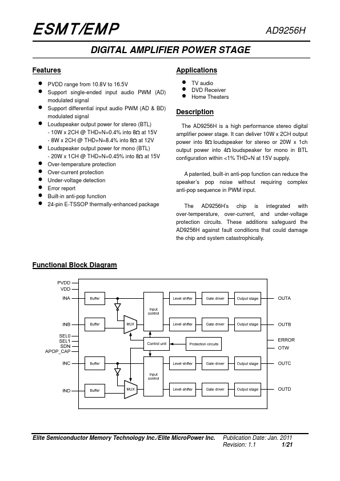

Preview of AD9256H PDF

Datasheet Details

Part number:

AD9256H

Manufacturer:

Elite Semiconductor

File Size:

111.48 KB

Description:

Digital amplifier power stage.
