AD92580C

DIGITAL AMPLIFIER POWER STAGE

AD92580C Features

* n P2P with AD92580 n Single supply voltage(LDO built-in) n PVDD range from 5V to 26V n Support single-ended input audio PWM (AD) modulated signal n Support differential input audio PWM (AD & BD) modulated signal n Loudspeaker output power for stereo (BTL) - 20W x 2CH @ THD+N=0.1% into 8Ω at 24V - 15

AD92580C General Description

AD92580C is a high performance stereo digital amplifier power stage. It can deliver 20Wx2CH output power (BTL) into 8Ω loudspeaker for stereo; or 40Wx1CH output power into 4Ω loudspeaker for mono in PBTL configuration within <1% THD+N at 24V supply. AD92580C also supports 10Wx4CH output power into 4.

AD92580C Datasheet (598.29 KB)

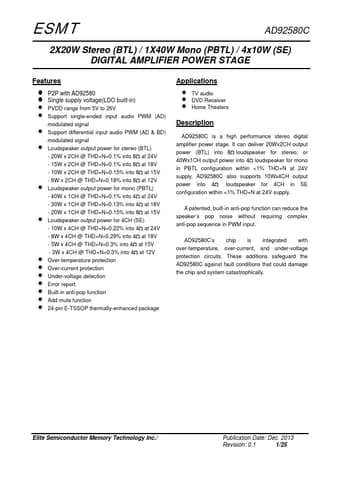

Preview of AD92580C PDF

Datasheet Details

Part number:

AD92580C

Manufacturer:

Elite Semiconductor

File Size:

598.29 KB

Description:

Digital amplifier power stage.
