AD9250 Datasheet, Converter, Analog Devices

AD9250 Features

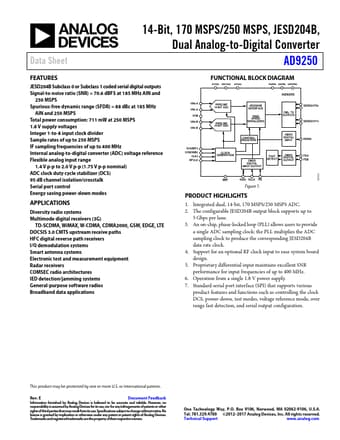

• Converter JESD204B Subclass 0 or Subclass 1 coded serial digital outputs Signal-to-noise ratio (SNR) = 70.6 dBFS at 185 MHz AIN and 250 MSPS Spurious-free dynamic range (SFDR) = 88 dBc at 185 MHz

PDF File Details

Part number:

AD9250

Manufacturer:

Analog Devices ↗

File Size:

1.41MB

Download:

📄 Datasheet

Description:

Dual analog-to-digital converter. 4 Specifications 5 ADC DC Specifications 5 ADC AC Specifications 6 Digital Specifications 7 Switching Specifications 9 Timing Sp

AD9250 Application

• Applications Diversity radio systems Multimode digital receivers (3G) TD-SCDMA, WiMAX, W-CDMA, CDMA2000, GSM, EDGE, LTE DOCSIS 3.0 CMTS upstream rec
