AD9266 Datasheet, Converter, Analog Devices

AD9266 Features

  • Converter 1.8 V analog supply operation 1.8 V to 3.3 V output supply SNR 77.6 dBFS at 9.7 MHz input 71.1 dBFS at 200 MHz input SFDR 93 dBc at 9.7 MHz input 80 dBc at 200 MHz input Low power 56 mW

PDF File Details

Part number:

AD9266

Manufacturer:

Analog Devices ↗

File Size:

1.09MB

Download:

📄 Datasheet

Description:

1.8v analog-to-digital converter.

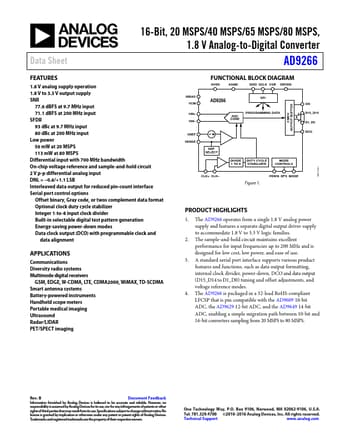

Datasheet Preview: AD9266 📥 Download PDF (1.09MB)
Page 2 of AD9266 Page 3 of AD9266

AD9266 Application

  • Applications Communications Diversity radio systems Multimode digital receivers GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA Smart antenna syst
