AD9361S Datasheet, Transceiver, Analog Devices

AD9361S Features

  • Transceiver
  • RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
  • Transmit band: 46.875 MHz to 6.0 GHz
  • Receive band: 70 MHz to 6.0 GHz
  • Dual receivers: 6

PDF File Details

Part number:

AD9361S

Manufacturer:

Analog Devices ↗

File Size:

1.54MB

Download:

📄 Datasheet

Description:

Rf agile transceiver. The AD9361S-CSH is a high performance, highly integrated, RF agile transceiver designed for use in 3G and 4G applications. Its progra

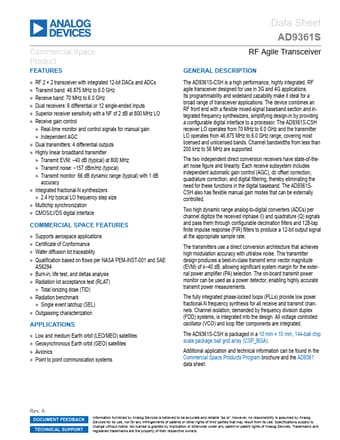

Datasheet Preview: AD9361S 📥 Download PDF (1.54MB)
Page 2 of AD9361S Page 3 of AD9361S

AD9361S Application

  • Applications
  • Certificate of Conformance
  • Wafer diffusion lot traceability
  • Qualification based on flows per NASA PEM-INS
