AD9520-4, 12 LVPECL/24 CMOS Output Clock Generator

Data Sheet AD9520-4 12 LVPECL/24 CMOS Output Clock Generator with Integrated 1.6 GHz VCO .
The AD9520-41 provides a multioutput clock distribution function with subpicosecond jitter performance, along with an on-chip PLL and VCO.

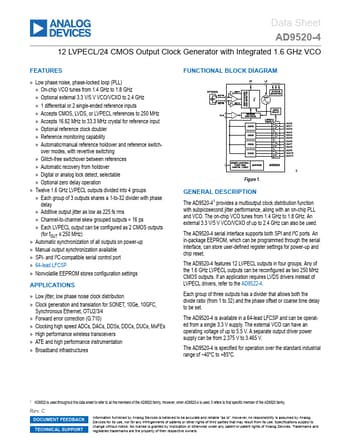

datasheet Preview Page 1 from Datasheet4u.com

AD9520-4-AnalogDevices.pdf

AD9520-4 Datasheet Preview — Preview of AD9520-4 PDF

Datasheet Details

Part number:

AD9520-4

Manufacturer:

Analog Devices ↗

File Size:

2.20 MB

Description:

12 LVPECL/24 CMOS Output Clock Generator

Features

* Low phase noise, phase-locked loop (PLL)
* On-chip VCO tunes from 1.4 GHz to 1.8 GHz
* Optional external 3.3 V/5 V VCO/VCXO to 2.4 GHz
* 1 differential or 2 single-ended reference inputs
* Accepts CMOS, LVDS, or LVPECL references to 250 MHz
* Accepts 16.62 MHz to 33.3 MHz c

Applications

* Low jitter, low phase noise clock distribution
* Clock generation and translation for SONET, 10Ge, 10GFC, Synchronous Ethernet, OTU2/3/4
* Forward error correction (G.710)
* Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs
* High performance wireless transceivers
* A
