AD9630

Low Distortion 750 MHz Closed-Loop Buffer Amp

AD9630 Features

* Excellent Gain Accuracy: 0.99 V/V Wide Bandwidth: 750 MHz Slew Rate: 1200 V/ ␮s Low Distortion

* 65 dBc @ 20 MHz

* 80 dBc @ 4.3 MHz Settling Time 5 ns to 0.1% 8 ns to 0.02% Low Noise: 2.4 nV/ √ Hz Improved Source for CLC-110 APPLICATIONS IF/Communications Impedance Transformations Driv

AD9630 General Description

The AD9630 is a monolithic buffer amplifier that utilizes a patented, innovative, closed-loop design technique to achieve exceptional gain accuracy, wide bandwidth, and low distortion. Slew rate limiting has been overcome as indicated by the 1200 V/µs slew rate; this improvement allows the user gre.

AD9630 Datasheet (101.81 KB)

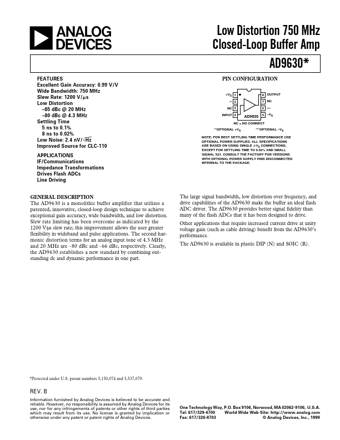

Preview of AD9630 PDF

Datasheet Details

Part number:

AD9630

Manufacturer:

Analog Devices ↗

File Size:

101.81 KB

Description:

Low distortion 750 mhz closed-loop buffer amp.
