AD9778A, AD9779A Dual 12-/14-/16-Bit 1 GSPS Digital-to-Analog Converters

Analog Devices

Description

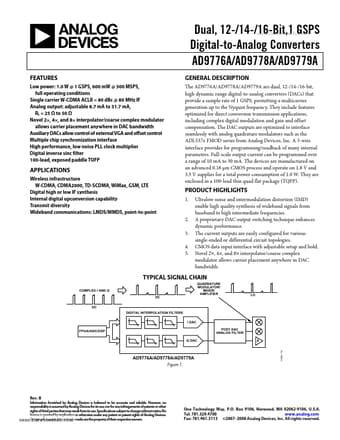

Dual, 12-/14-/16-Bit,1 GSPS Digital-to-Analog Converters AD9776A/AD9778A/AD9779A www.DataSheet4U.com .
The AD9776A/AD9778A/AD9779A are dual, 12-/14-/16-bit, high dynamic range digital-to-analog converters (DACs) that provide a sample rate of 1 GSPS, per.

📥 Download Datasheet

AD9778A Datasheet Preview — This datasheet PDF includes multiple part numbers: AD9778A, AD9779A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AD9778A, AD9779A
Manufacturer: Analog Devices ↗
File Size: 1.80 MB
Datasheet: AD9779A_AnalogDevices.pdf
Description: Dual 12-/14-/16-Bit 1 GSPS Digital-to-Analog Converters
Note: This datasheet PDF includes multiple part numbers: AD9778A, AD9779A.
Please refer to the document for exact specifications by model.

Features

* Low power: 1.0 W @ 1 GSPS, 600 mW @ 500 MSPS, full operating conditions Single carrier W-CDMA ACLR = 80 dBc @ 80 MHz IF Analog output: adjustable 8.7 mA to 31.7 mA, RL = 25 Ω to 50 Ω Novel 2×, 4×, and 8× interpolator/coarse complex modulator allows carrier placement anywhere in DAC bandwidth Auxilia

Applications

* including complex digital modulation and gain and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as the ADL537x FMOD series from Analog Devices, Inc. A 3-wire interface provides for programming/readback of many internal parameters.
