ADD8502 - Integrated LCD Grayscale Generator

SCK INTERFACE LOGIC A2 DIGITAL CORE VP4 POWER SAVE LOGIC VN4 R VP4 A3 V2 The ADD8502 is an integrated, high accuracy, programmable grayscale generator. Two sets of five output reference voltages are mask programmed to 0.2% resolution. The outputs switch between the two sets of five levels. The r.

ADD8502 Features

* Two Mask Programmable Sets of Five Reference Levels Dual 10-Bit DACs for Flicker Offset and Range Adjustment Integrated VCOM Switching Single-Supply Operation: 5.0 V Low Supply Current: 300 ␮ A Global Power Save Mode: 1 ␮A Max Fast Settling Time for Load Change: 20 ␮ s Stable with 20 nF/100 ⍀ Loads

ADD8502_AnalogDevices.pdf

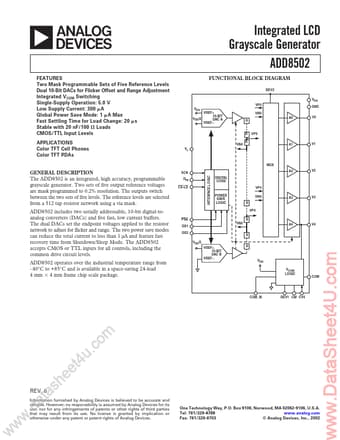

ADD8502 Datasheet Preview — Preview of ADD8502 PDF
