ADD8504 Datasheet, Buffers, Analog Devices

ADD8504 Features

  • Buffers Single-supply operation: 3.3 V to 6.5 V Rail-to-rail input, rail-to-rail output High output current: 380 mA Low supply current: 3.9 mA Stable with 1 nF loads Wide temperature range:

PDF File Details

Part number:

ADD8504

Manufacturer:

Analog Devices ↗

File Size:

188.05kb

Download:

📄 Datasheet

Description:

(add8504 - add8506) muxed input line inversion lcd gamma buffers. The ADD8504, ADD8505, and ADD8506 are 4-, 5-, and 6-channel LCD gamma reference buffers designed to drive column driver gamma inputs

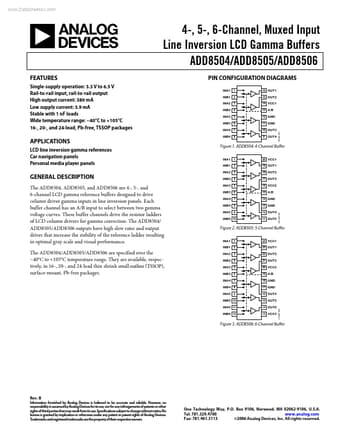

Datasheet Preview: ADD8504 📥 Download PDF (188.05kb)
Page 2 of ADD8504 Page 3 of ADD8504

ADD8504 Application

  • Applications LCD line inversion gamma references Car navigation panels Personal media player panels INA1 1 INB1 2 INA2 3 20 VCC1 19 OUT1 18 OUT2 17
