ADD8704 Datasheet, Amplifier, Analog Devices

ADD8704 Features

  • Amplifier Single-supply operation: 4.5 V to 16.5 V Upper/lower buffers swing to VDD/GND Continuous output current: 35 mA VCOM peak output current: 250 mA Offset voltage: 15 mV Slew rate: 6 V/µs U

PDF File Details

Part number:

ADD8704

Manufacturer:

Analog Devices ↗

File Size:

546.56kb

Download:

📄 Datasheet

Description:

16 v quad operational amplifier. The ADD8704 is a single-supply quad operational amplifier that has been optimized for today’s low cost TFT LCD notebook and monitor p

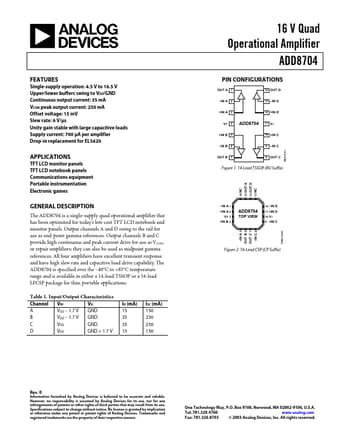

Datasheet Preview: ADD8704 📥 Download PDF (546.56kb)
Page 2 of ADD8704 Page 3 of ADD8704

ADD8704 Application

  • Applications TFT LCD monitor panels TFT LCD notebook panels Communications equipment Portable instrumentation Electronic games OUT B 7 8 Figure 1
