ADD8706 Datasheet, Amplifier, Analog Devices

ADD8706 Features

  • Amplifier Single-supply operation: 4.5 V to 16.5 V Upper/lower buffers swing to VS/GND Continuous output current: 35 mA VCOM peak output current: 250 mA Offset voltage: 15 mV Slew rate: 6 V/µs Un

PDF File Details

Part number:

ADD8706

Manufacturer:

Analog Devices ↗

File Size:

255.67kb

Download:

📄 Datasheet

Description:

Operational amplifier. The ADD8706 is a single-supply, 5-channel buffer with a separate VCOM amplifier that has been optimized for today’s low cost TFT LCD

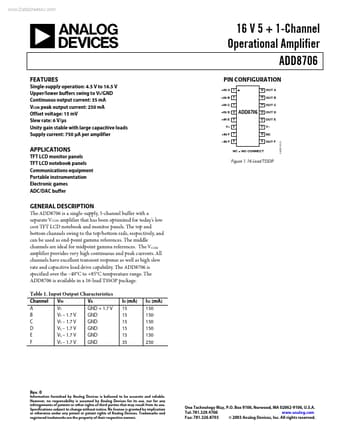

Datasheet Preview: ADD8706 📥 Download PDF (255.67kb)
Page 2 of ADD8706 Page 3 of ADD8706

ADD8706 Application

  • Applications TFT LCD monitor panels TFT LCD notebook panels Communications equipment Portable instrumentation Electronic games ADC/DAC buffer NC =
