ADD8707 12-Channel Gamma Buffers with VCOM and Regulator

6 Typical Performance Characteristics 8 Application Notes 12 Tap Point Selection 12 Voltage Regulator 13 Maximum Power Dissipation 13 Land Pattern 13 Operating Temperature Range 14 Typical Applications Circuit 16 Development Circuit 17 Tap Point and Regulator Voltage Request Form 19 Regulator .

ADD8707 Features

* 12 precision gamma reference outputs Mask-programmable gamma resistors: 0.2% resolution and 0.1% accuracy Mask programmable voltage regulator: 0.4% accuracy Upper 6 buffers swing to VDD Lower 6 buffers swing to GND Single-supply operation: 7.5 V to 16 V Gamma current drive: 15 mA per channel VCOM pe

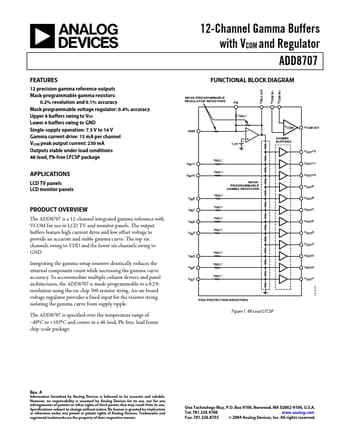

ADD8707 Datasheet (654.71 KB)
